Stryker Off Road Design

6" F450 RAD DROP LIFT KIT FOR 2017 TO 2022 Ford Super Duty

6" F450 RAD DROP LIFT KIT FOR 2017 TO 2022 Ford Super Duty

Regular price $3,399.95 USD
Regular price Sale price $3,399.95 USD
Sale Sold out
Identity Series Color
Shock Options
Dual Steering Stabilizer
New Window RAD Lift Kit on Diesel Brothers F450 Night Train
4" F250 F350 Lift Kit on Diesel Brothers Night Train

6" F450 F550 Lift Kits released in our newest generation of suspension lifts! Our RAD” series (Radius Arm Drop) series. This new 6" F450 F550 RAD Series line is the perfect balance between those that need an extremely rugged suspension lift, yet still want it to be stylish!

We address everything needed for your 6" F450 F550 Lift Project in this kit.  Our rear blocks have the bumpstop pads built in to utilize the factory rear bumpstops that Ford designed in for the heavy hauling these trucks were designed for. Our 6" F450 F550 drop brackets for the radius are the beefiest in the industry!

We went about it a little different with this 6" F450 F550 Lift Kit. Instead of the drop bracket going up inside the factory radius arm pocket, we designed ours to mount uniquely outside. That adds width and strength to your 6" F450 F550 Lift. These features cost more to produce, but the end result is unmatched. All our steel is U.S. made and is at least ¼”, and in some instances even larger. We offer several shock options on this line.

The image inset is courtesy of the Diesel Brothers November Truck Giveaway! The Stryker RAD Series Lift Kit was used and brand referenced on their promotional material.



OPTIONAL SHOCK UPGRADES

Stryker's 6" F450 F550 lift kit does not require upgrading your shocks if they are still comfortably within their useful life.

With the shock extension brackets included in this kit the standard F450 F550  Super Duty OEM Shocks can comfortably operate with this 6" lift kit and continue to provide you with that excellent Super Duty ride you expect.

Stryker offers shock upgrades if your driving conditions exceed the standard OEM shocks sweet spot for off road terrain or towing or if your shock is nearing its useful expected operating life. The industry consensus is that with heavy use, you could be looking to replace them at 40,000 or 50,000 miles or sooner. Under normal conditions, 75,000 to 90,000 miles might be reasonable. We have provided a range of shocks for you to consider.

SHOCK OPTIONS

Stryker ORD-Level 1



Ford F250 F350 Steering Stabilizer L1 Shocks





Stryker's ORD (Off Road Design) Level 1 Shock upgrade are a silver powdered 2.0 body with a nice decal (color coated to the lift options you choose). These offer 10-stage variable valving and are a nitrogen charged shock. This is a great shock for the money. With the variable valving, these can react to on road and off road conditions. They offer a great ride and carry a 3-year warranty!



Stryker ORD-Level 2 Bilstein



Ford F250 F350 Steering Stabilizer Bilstein Shocks

This Stryker ORD Level 2 Shock upgrade is a special ordered Bilstein monotube shock that we stock exclusively for our kits. These deliver the performance Bilstein is known for. We took this shock to another level by taking the existing zinc plating, adding our own 3M clear protective film (as we found their zinc plating just wasn’t enough protection), then we choose a decal color that matches the lift color options you chose.


Stryker ORD-Level 3 RC Monotube

Stryker Level 3 Monotube Steering Stabilizer Shocks



Stryker Level 3 Shock Recommendation

Stryker's ORD Level 3 Monotube Shocks are a T6061 brushed aluminum bodied MONOTUBE shock. They represent an OUTSTANDING combination of Ride Quality coupled with true Heavy Duty Performance when required.

These would best be described as equivalent to a Fox monotube for performance but with the added value of carrying a THREE YEAR Warranty and a clean uncluttered brushed aluminum look!

They have an internal floating piston for a very consistent performance. With the T6061 brushed aluminum body, these bodies can never rust.  With this combination of performance and value this shock option carries the STRYKER-HIGHLY-RECOMMENDED classification for this DSS kit!



Stryker ORD-Level 4 Fox 2.0 Fox

f250 f350 dual steering stabilizer shocks

The body is a 2.0" impact extruded, CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time. Black-anodized, CNC-machined 6061-T6 billet aluminum ends. The shaft is 5/8" hard chrome plated heat treated alloy steel.

The piston is a race-developed high-flow piston design. The valving, seals, redundant sealing pack system main seal, wiper seal, scraper seal are all designed for superior performance.

The oil is JM92 Advanced Suspension Fluid for improved performance at variable temperatures. The bushings are quiet nitrile rubber allows for increased suspension a

Stryker ORD-Level 5 Fox 2.0 Reservoir

F250 Dual Steering Stabilizer Fox 2.0 Reservoir Shocks

This Level 5 Fox 2.0 Performance Series Reservoir, IFP aluminum smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling t

DUAL STEERING STABILIZERS

There is no consensus regarding single versus dual steering stabilizers. But lifted truck projects are usually accompanied with larger tire sizes.

Larger tires bring a variety of physical demands for your F450 F550 Super Duty Truck

Vibration:
Vibration is the primary demand to focus on. The original excellent suspension on your F450  F550 can accommodate most of that vibration. But if you improve the handling and ride quality by dampening the added side to side motion of your tires that is the first place to address. Shock absorbers dampen the up and down movement of your Super Duty and they can also dampen the side movement of your larger tires.

Dual Versus Single:
Dual stabilizers dampen the vibrations better than a SINGLE shock tied to one side in OUR opinion. Is the improvement worth the added cost?

Of course it depends on several subjective INFORMED decisions. If your Lifted Super Duty is actually a daily driver then the performance improvement may not be required. But if you plan to build your F450 F550 with the capability of HEAVY OFF ROADING even if you don't go there then DUAL is likely your best investment. The cost ADDER is actually not significant compared to the value of your F450 F550. If your lifted truck has tires 35" or larger you are an excellent candidate to investigate a Steering Stabilizer even if Off Road is not a concern!.

And then there is the subjective issue of STYLE! What did you want to look at when you see the front of your F450 F550 Lift? Stryker's goal is to provide you with RUGGED STYLE™! We are committed to providing performance and style. Review our V1 and V2 offerings including 4 levels of shock upgrades.


Dual Steering Stabilizer Offered

2023 F450 F50 Steering Stabilizer
The Stryker V1 Off Road Design Dual Steering Stabilizer gives your truck better handling while adding to the Rugged Style of the suspension!

Our steering stabilizer provides better handling and control of oversized tires by reducing bump steer and front end vibration. It also reduces ball joint and tie rod wear and tear, and is an easy bolt on installation!

SPECIAL NOTE: If you prefer our V2 Dual Steering Stabilizer or  you would like to upgrade from our standard Level 2 Shock offering or even if you would like to upgrade from our standard Identity Series Black

Features:

  • CAD Designed and laser cut from 1/4" and 3/8" steel
  • Reduces bump steer and front end vibration
  • Reduces ball joint and tie rod wear and tear
  • Simply and easy bolt-on installation
  • Comes with our Level 2 Shock as standard.
  • Made in the USA!
F450 2023 Steering Stabilizer V2



The Stryker V2 Off Road Design Mini-Truss Dual Steering Stabilizer gives your truck better handling while drastically improving the look of the suspension! Stryker Rugged Style!

The Mini-Truss on the top clamp is designed to fit perfectly between your front axle's differential housing and the bump stop pad, providing all the rugged good looks of a weld-on truss with the convenience of a bolt-on stabilizer!


Our steering stabilizer provides better handling and control of oversized tires by reducing bump steer and front end vibration, as well as reducing ball joint and tie rod wear and tear.

This new clamp design does not attach to, and is not affected in any way by, the differential - Meaning you no longer have to worry about your aftermarket diff cover preventing you from running an aftermarket stabilizer!

Features:

  • CAD Designed and laser cut from 1/4" and 3/8" steel
  • Reduces bump steer and front end vibration
  • Reduces ball joint and tie rod wear and tear
  • Simply and easy bolt-on installation
  • Made in the USA!

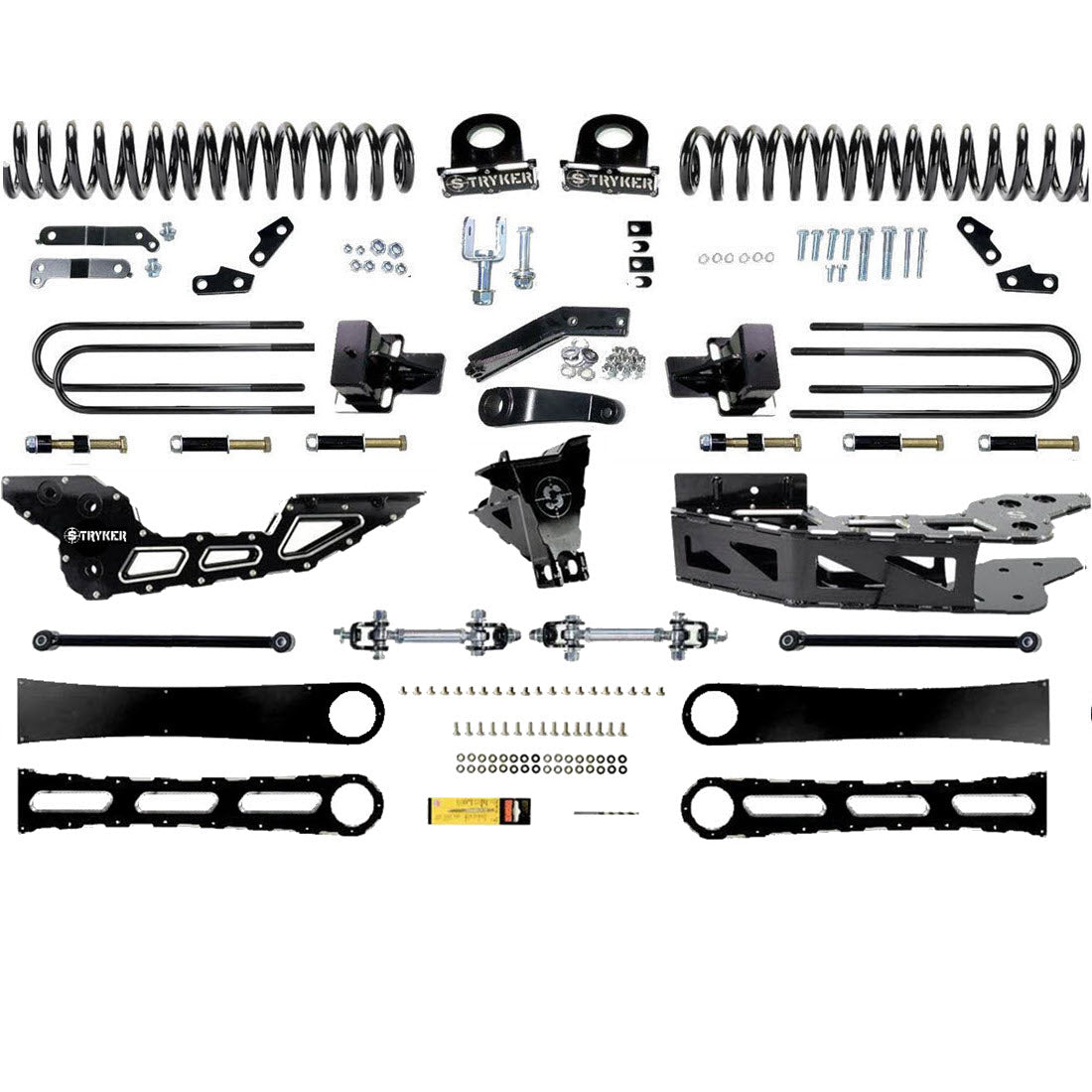

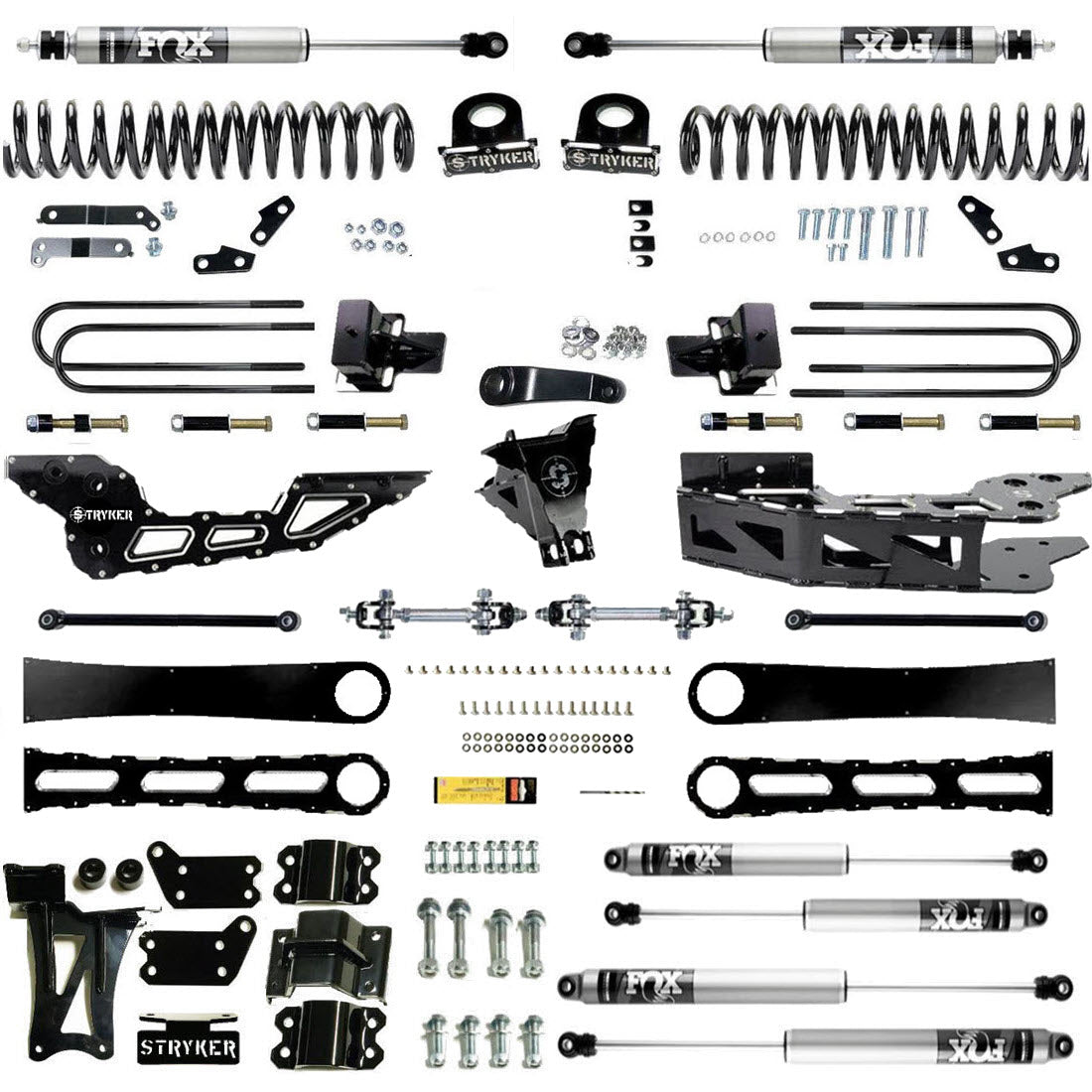

Complete RAD Kit CONTENTS:

  • (qty 2) 6” smooth ride coils
    (qty 2) Stryker aluminum and machined coil “badges”
    (qty 1) Steering Relocation Bracket
    (qty 1) Drop pitman arm
    (qty 2) Replacement HD sway bar endlinks with “extreme articulation” feature
    (qty 2) Rear sway bar endlinks
    (qty 2) “RAD” HD drop brackets
    (qty 2) Rear blocks with built in HD bumpstop pads
    (qty 1) Bracket system to retain OEM steering stabilizer (not included when Dual Steering Stabilizer Included)
    (qty 2) Brakeline drop brackets
    (qty 4) U-bolts with hardware
    (qty 2) STRYKER billet and machined radius arm faceplates with stainless hardware
    (qty 1) Identity Series radius arm faceplate template
    (qty 1) Drill bit
    (qty 1) 10/32 tap
    All other necessary hardware

FITMENT:

  • 17-22 F450 F550 (gas or diesel)





Feel free to contact us at sales@strykerordesign.com
or (865) 233-0076 with any questions!
